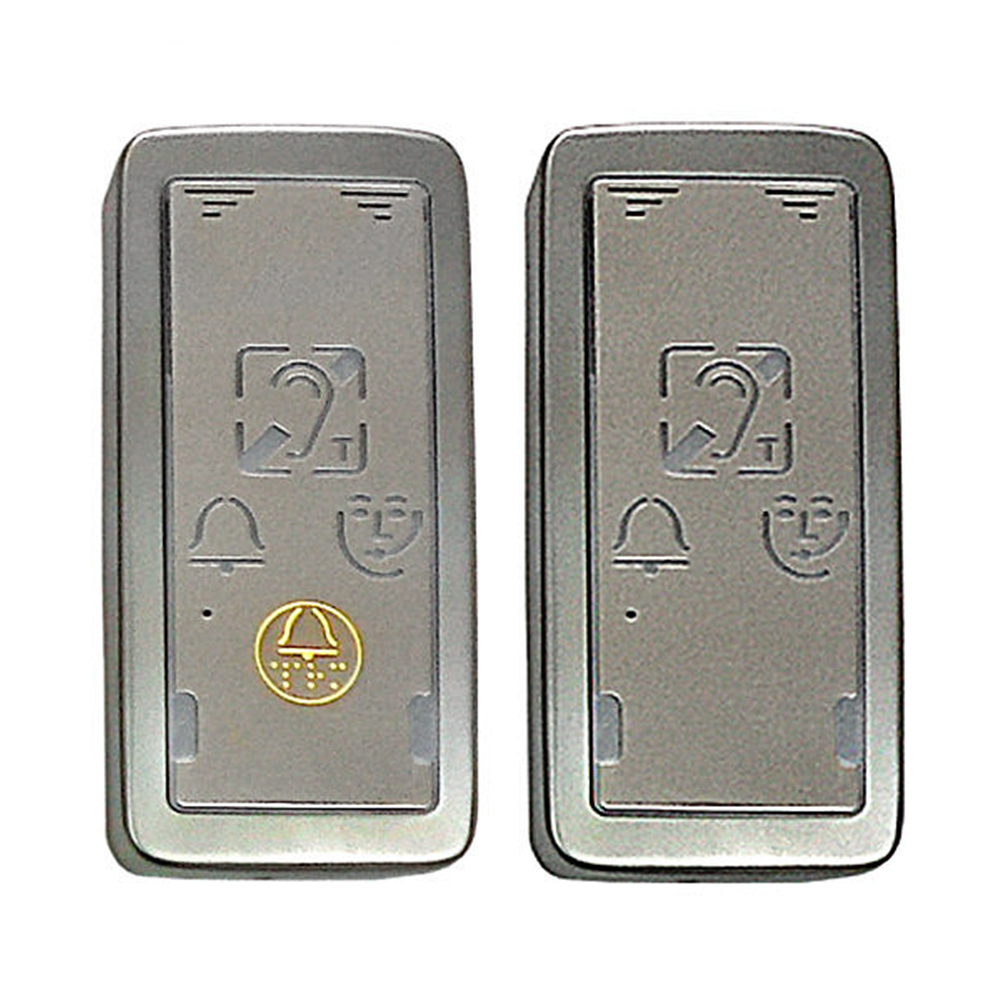

Auto Dialler - BOX MIDIS PANEL INOX - Surface Mounted Face Plate With And Without Alarm Button - INOX surround
Product Code: A-AA-037
Product Description
Surface Mounted Speaker and Microphone Module.
Integrated speaker and microphone
- EN81-28 Standard, Remote alarm for new lifts 10/2003
- EN 81-70 : Part 70 : Accessibility to the elevators for everyone including people with disabilities.
- EN 81-1/81-2 standards : Security rules for lift construction and installation.
- Stainless steel face plate
- Built in inductive loop
- Power indicator.
- Green indicator / liason with call centre active.
- Yellow indicator / alarm present.
- SIZE (L x w x H):
- 176 x 85 x 22 mm
- Protection Index: 40
- With or without alarm button.
CONNECTIONS
External power supply:
Needs a 12 V supply (protected) of TA type allowing the Yellow/Green lamps and the magnetic loop to work.
The 'Installation solutions' pdf files shown below are designed to help you select the correct products for your various installation requirements. If you need any help for other configurations then please do not hesitate to call our technical team.
