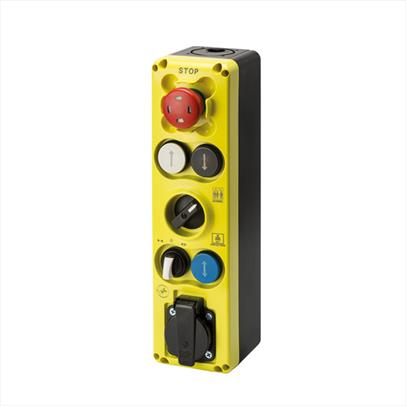

GM Series Car Top Control Unit - GM757/UK

Product Description

GM Series car top controller unit

Fully compliant with EN 81.20

IP54 Rated
Spring clamp terminals
Test/Normal cam switch - 2 x NO, 2 x NC
Up button 2 x NO, 1 x NC contact
Down button 2 x NO, 1 x NC contact
Run button 2 x NO contacts
1 x Door Open/Close cam switches. 1 x NO contacts
UK 3 pin socket
Ideal for lifts with automatic doors
Non Wired
Push/Pull 40mm flag indicated emergency stop button. 2 x NC contact. Using our unique fast trigger contact block to meet the new machine room rule EN 602041. In the event that the contact block breaks loose or is accidentally released from the base of the push button then the NC contact will open and the lift will be isolated, preventing any further operation.
Additional contact blocks can be selected from the drop down box.
