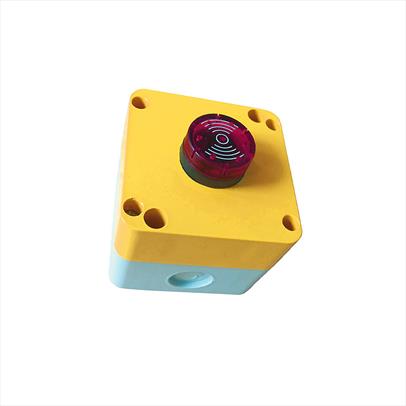

LED Flashing Light With Warning Signal
Product Code: ART.052226
Product Description
According to EN 81-20 5.12.1.8.3 g) an audible signal at the car and a flashing light under the car shall be activated during movement (with activated bypass devices). The sound level of the audible warning shall be at least 55 dB(A) below the car at 1 m distance.
Specification
Supply voltage - 24V AC/DC
Current - 20 mA
Protection Type - IP54 (Front face IP20)
Lamp - LED flashing light in Red
Volume - 80db (measured in a distance of 1m)
Volume in the car - approx. 70db (for mounting below the car)
Interval Time - 2.5 Seconds
Supply Line - YSLY-OZ 2x1mm² with wire end sleeves (Halogen-free cables on demand)
Ambient Temperature - -25° up to +55°C
| Flashing light 80dB 24V, without cable– Part Number ART.052226 Housing with LED flashing light red and warning signal 80dB, 24V AC/DC, housing IP54, front face IP20, without cable. |
| Flashing light 80dB 24V, with 10m cable– Part Number ART.052252 Housing with LED flashing light red and warning signal 80dB, 24V AC/DC, housing IP54, front face IP20, with 10m cable |
