Steel Wired Armoured (SWA) LSOH PVC Cable 2 Core
Product Code: 1.5/SWA/2C/LSOH
Product Description

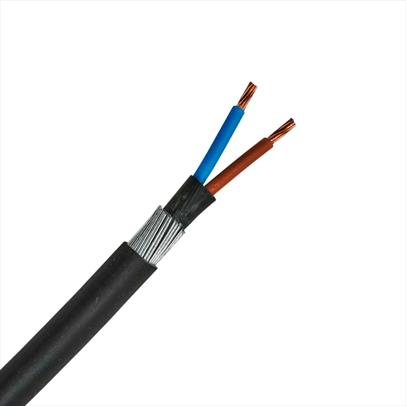

Steel Wired Armoured (SWA) LSOH PVC Cable 2 Core
The Steel Wired Armoured cable (SWA) LSOH is a low voltage 600/1000V power and auxiliary fixed wiring cable with low smoke halogen-free. Ideal for use in power networks in conduit or trunking. For both outdoor and indoor or underground applications.
The galvanised steel wire braid serves as a magnetic screen against interference.
Technical Information:
Sold per metre
Available in the following sizes:

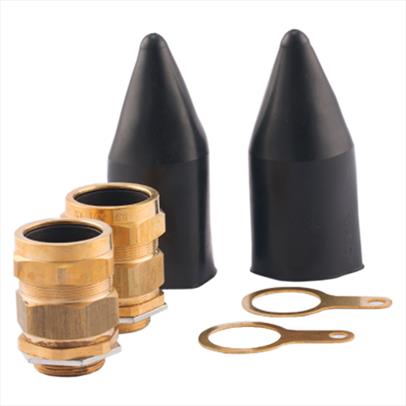

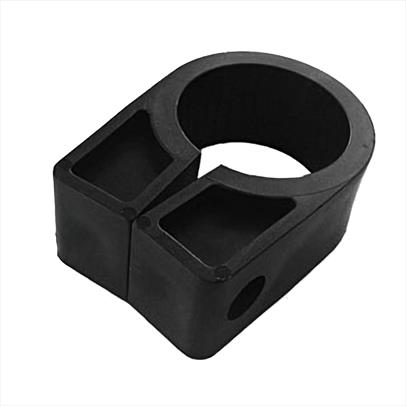

- 1.50mm - We recommend Cable Glands, BW20S or TBW20S & Polypropylene cable cleats, code C5-100 (1 per pack)
- 2.50mm - We recommend Cable Glands, BW20S or TBW20S & Polypropylene cable cleats, code C6-100 (1 per pack)
- 4.00mm - We recommend Cable Glands, BW20S or TBW20S & Polypropylene cable cleats, code C6-100 (1 per pack)
- 6.00mm - We recommend Cable Glands, BW20 or TBW20 & Polypropylene cable cleats, code C7-100 (1 per pack)
- 10.00mm - We recommend Cable Glands, BW25 or TBW25 & Polypropylene cable cleats, code C8-100 (1 per pack)
- 16.00mm - We recommend Cable Glands, BW25 or TBW25 & Polypropylene cable cleats, code C9-100 (1 per pack)
| Technical Specification: | |
|---|---|
| Voltage Rating | 600V / 1000V |
| Temperature Rating (Fixed) | -20°C to +90°C |
| Materials | Class 2 Stranded Copper |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Armour | Steel Wire Armour (SWA) |
| Bedding | Low Smoke Zero Halogen (LSZH) |
| Flame Propagation | BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24 Cat C |
| Standards | BS 6724, BS EN/IEC 60228, BS EN/IEC 60754-1/2, BS EN/IEC 50267-2-1M BS EN/IEC 60502-1, BS EN/IEC 61034-2 |
