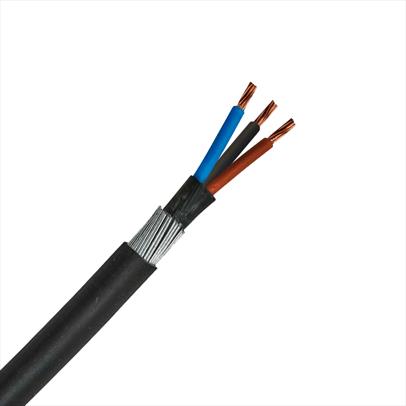

Steel Wired Armoured (SWA) PVC Cable 3 Core
Product Code: 1.5/SWA/3C
Product Description
Steel Wired Armoured (SWA) PVC Cable 3 Core
The Steel Wired Armoured cable (SWA) is a low voltage 600/1000V power and auxiliary fixed wiring cable for use in power networks. Ideal for conduit or trunking in outdoor, indoor or underground applications.
The galvanised steel wire braid serves as a magnetic screen against interference.
Technical Information:
Sold per metre
Available in the following sizes:

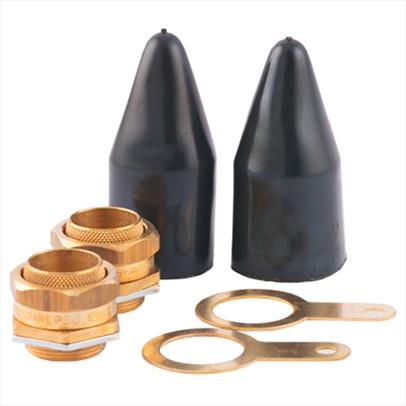

- 1.50mm - We recommend Cable Glands, BW20S or TBW20S & Polypropylene cable cleats, code C5-100 (1 per pack)
- 2.50mm - We recommend Cable Glands, BW20S or TBW20S & Polypropylene cable cleats, code C6-100 (1 per pack)
- 4.00mm - We recommend Cable Glands, BW20S or TBW20S & Polypropylene cable cleats, code C6-100 (1 per pack)
- 6.00mm - We recommend Cable Glands, BW20 or TBW20 & Polypropylene cable cleats, code C7-100 (1 per pack)
- 10.00mm - We recommend Cable Glands, BW25 or TBW25 & Polypropylene cable cleats, code C8-100 (1 per pack)
- 16.00mm - We recommend Cable Glands, BW25 or TBW25 & Polypropylene cable cleats, code C9-100 (1 per pack)
| Technical Specification: | |
|---|---|
| Voltage Rating | 600V / 1000V |
| Temperature Rating (Fixed) | -25°C to +90°C |
| Materials | Class 2 Stranded Copper, Polyvinyl Chloride (PVC) |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Armour | Steel Wire Armour (SWA) |
| Flame Propagation | IEC/EN 60332-1-2 |
| Standards | BS 5467, IEC/EN 60502-1, IEC/EN 60228 |
