SY Control Flex PVC 4 Core Cable
Product Code: 0.75MM/4/SY
Product Description

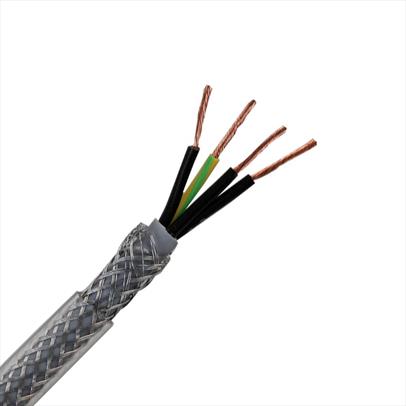

SY Control Flex PVC 4 Core
The SY control cable is a flexible wiring cable with steel wire braided flexible connecting cables and PVC insulation and sheath, ideal for flexible applications requiring free movement without tensile load.
The galvanised steel wire braid serves as a magnetic screen against interference.
Technical Information:
Sold per metre
Available in the following sizes:
- 0.75mm - We recommend A2 Gland packs, code A2-20S-PACK (2 per pack) & Polypropylene cable cleats, code C5-100 (1 per pack)
- 1.00mm - We recommend A2 Gland packs, code A2-20S-PACK (2 per pack) & Polypropylene cable cleats, code C5-100 (1 per pack)
- 1.50mm - We recommend A2 Gland packs, code A2-20S-PACK (2 per pack) & Polypropylene cable cleats, code C5-100 (1 per pack)
- 2.50mm - We recommend A2 Gland packs, code A2-20S-PACK (2 per pack) & Polypropylene cable cleats, code C5-100 (1 per pack)
- 4.00mm - We recommend A2 Gland packs, code A2-20-PACK (2 per pack) & Polypropylene cable cleats, code C5-100 (1 per pack)
- 6.00mm - We recommend A2 Gland packs, code A2-20-PACK (2 per pack) & Polypropylene cable cleats, code C6-100 (1 per pack)
- 10.00mm - We recommend A2 Gland packs, code A2-25-PACK (2 per pack) & Polypropylene cable cleats, code C8-100 (1 per pack)
| Technical Specification: | |
|---|---|
| Voltage Rating | 300V / 500V |
| Temperature Rating (Fixed) | -40°C to +80°C |
| Temperature Rating (Flexed) | -5°C to +70°C |
| Materials | Class 5 Flexible Copper, Polyvinyl Chloride (PVC) |
| Armour | GSBW (Galvanised Steel Wire Braid) |
| Flame Propagation | IEC/EN 60332-1-2 |
| Standards | VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54) |
