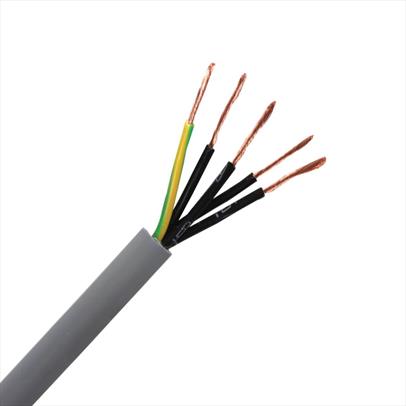

YY Control LSOH Flex PVC 5 Core Cable
Product Code: 0.75/5/YYCF/LS
Product Description
YY Control LSOH Flex PVC 5 Core
The YY control cable LSZH is a flexible wiring cable with low smoke halogen-free insulation for use in conduit or trunking, ideal for control equipment and flexible applications without tensile load in dry, ambient and wet indoor settings.
Technical Information:
Sold per metre
Available in the following sizes:
- 100 x 0.75mm
- 100 x 1.00mm
- 100 x 1.5mm
| Technical Specification: | |
|---|---|
| Voltage Rating | 300V / 500V |
| Temperature Rating (Fixed) | -30°C to +80°C |
| Temperature Rating (Flexed) | -15°C to +70°C |
| Materials | Class 5 Flexible Copper |
| Insulation | LSZH (Low Smoke Zero Halogen) |
| Flame Propagation | BS EN 60332-3-24 CAT C |
| Standards | VDE 0250, BS EN 50525-1, BS EN 50525-2-51, BS EN 50525-3-11 |
