3W Self Test Emergency Back-up For ALD LED Panel Range

Product Code: LED/ALD/EMST

Members - please login for prices

How to use Order Form?

Product Description

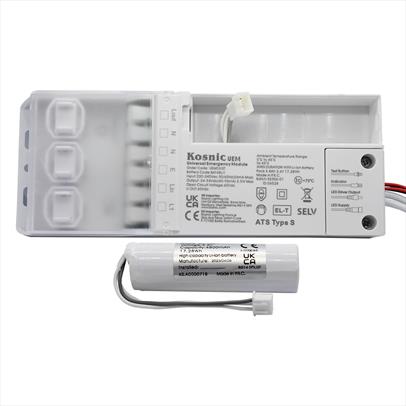

3W Self Test Emergency Back-up For ALD LED Panel Range

Self-test emergency back-up unit for LED car lighting ceiling panels.

Technical Information:

  • 3 hour emergency operation time
  • Built-in self-test function according to BS-EN-62034-2012
  • Easy plug & play installation
  • Internal Li-ion battery with improved lifespan
  • Easy battery replacement
  • Features loop-in & loop-out push-wire terminals

Technical Specification:
IP Rating IP20
Weight 285g
Input Voltage 220-240VAC
Output Voltage 24-54VDC
Output Current 40-95mA
Output Wattage 3.5W
Battery Voltage 3.6V
Battery Capacity 4800mAh
Charging Time 24h
Battery Lifetime 4 Years
