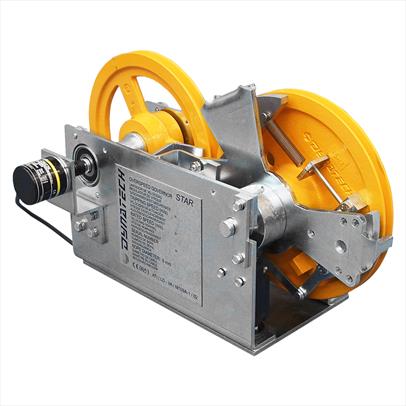

A3 - Star Plus Encoder Overspeed Governor
Product Code: Please-call-or-email-before-ordering-this-item.
Product Description
STAR A3 PLUS - ENCODER READY.
Anticreep device by electrical acting: 24VDC + Inductive Sensor (Included)
When using the D-BOX electronic device with Anticreep system, COIL should be 24VDC
According to the standards:EN 81-1:1998+A3:2009 and EN 81-2:1998+A3:2009.
Acting: BI-DIRECTIONAL
Maximum rated speed: 2,3 m/s ; Minimum rated speed: 0,1 m/s
Tripping speed:
- BI-DIRECTIONAL Minimum: 0,66 m/s Maximum: 2,72 m/s
Pulley Diameter: 200 mm ; Rope Diameter: 6 mm
Ready for encoder positioning - Encoder (optional)
Overspeed contact included - Rope out protection included
Rope slackening contacts included - Protection plate (optional)
Hardened Groove (optional)
