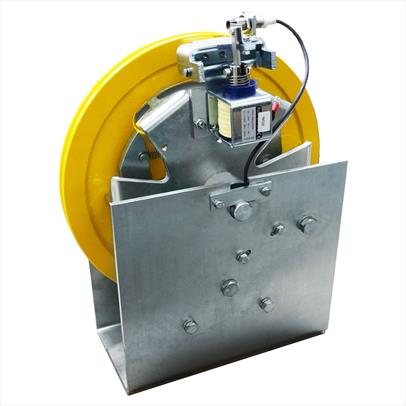

DYNATECH - A3 Vega Overspeed Governor - 300mm Pulley

Product Description

A3 - Vega Overspeed Governor - 300mm Pulley

Anticreep device by electrical acting: 24, 48 or 190 VDC + Inductive Sensor (Included)
When using the D-BOX electronic device with Anticreep system, COIL should be 24Vdc

-VEGA 300
Remote tripping mechanism by electrical acting: 24, 48 or 190 VDC (Optional)
Acting: BI-DIRECTIONAL or SINGLE-ACTING
Maximum rated speed: 3,4 m/s
Minimum rated speed: 0,1 m/s

Tripping speed:

· BI-DIRECTIONAL or SINGLE-ACTING:
Minimum: 0,8 m/s ; Maximum: 4,2 m/s

· ONLY SINGLE-ACTING (VEGA 300 LS):
Minimum: 0,5 m/s ; Maximum:0,8 m/s

Pulley Diameter: 300 mm
Rope Diameter: 6 mm / 6,5 mm
Overspeed contact included
Rope out protection included

Dynatech will only take responsibility for the correct functioning of their A3 governors if they are used in conjunction with the D-BOX. They cannot take responsibility if they have been paired with an existing controller manufacturers A3 set up.

Protection plate (optional)
Test groove (optional) - Hardened groove (optional)

All the product codes in the drop down box above are for bi-directional only. For Single acting governors please email your enquiry.
