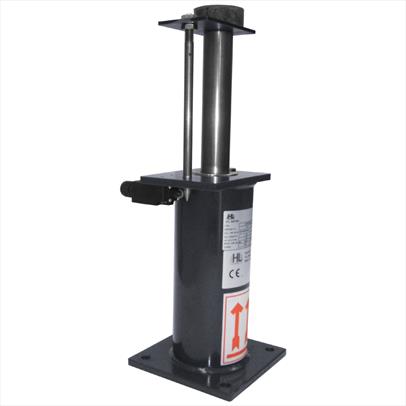

Hydronic - Hydraulic Oil Buffer - OBA Range
Product Code: OBA16
Product Description
Hydronic Lift designed Oil Buffers feature a sturdy welded structure and a precise progressive hydraulic braking, making them among the most efficient and reliable Oil Buffers on the market.
Our Oil Buffers are certified to European Lift directive (Annex IX, module H) requirements.
The complete Oil Buffer ranges are strictly tested and supplied complete with oil and safety switch (no cable)
Hydronic Lift Oil Buffer ranges offer solutions for standard traction elevators (from 1.6 to 2.5 m/s) and High Rise elevators (from 2.5 m/s to 10.0 m/s).
TECHNICAL INFORMATION:
Rated Speed: 1.60m/s to 2.00m/s
​Maximum impact speed: 1.84m/s to 2.34m/s
Piston stroke: 180mm to 286mm
Height: 525mm to 775mm.
Minimum Impact Mass: 450kg.
Maximum Impact Mass: 3500kg.
Comes oil filled as standard.
Type conforms to EN81.1, EN81-20, EN81-50
CE certificated.
