Pit Ladder - Three Part Folding Type - Electrical Version to EN81-20

Product Description

TECHNICAL INFORMATION:

FPL/02

Three-part pit folding ladder with floor attachment. Construction according to EN 131, EN 81-1/-2

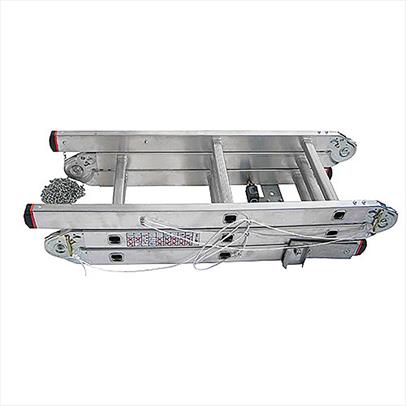

Three-part pit folding ladder (ladder type 8) with floor attachment for the longitudinal installation or transverse installation in the pit.
The ladder can be folded by means of a chain and pull cords, which are within reach from the shaft entrance. Suitable for pits with a max. depth of 1.4m. In the unfolded state the ladder length adds up to 2.56m. The ladder has to be set up in the pit with an angle of 65°-75° according to EN 131, so a tilting backwards is avoided.
In the pit must be a STOP switch, which has to be operated before unfolding the ladder.

FPL/03
Three-part pit folding ladder with floor attachment and MONITORING CONTACT ACCESSORY-SET-N acc. to EN 81-20
Three-part pit folding ladder (ladder type 8) with floor attachment for the longitudinal installation or transverse installation in the pit.
The ladder can be folded by means of a chain and pull cords, which are within reach from the shaft entrance. Suitable for pits with a max. depth of 1.4m. In the unfolded state the ladder length adds up to 2.56m. The ladder has to be set up in the pit with an angle of 65°-75° according to EN 131, so a tilting backwards is avoided.
In the pit must be a STOP switch, which has to be operated before unfolding the ladder.
