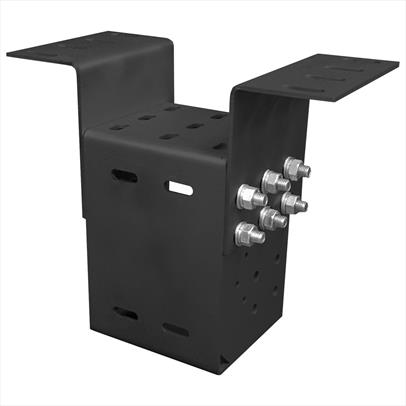

RENO Safety Gear Support System - Optional Mounting Brackets
Product Code: RENO/SM
Product Description

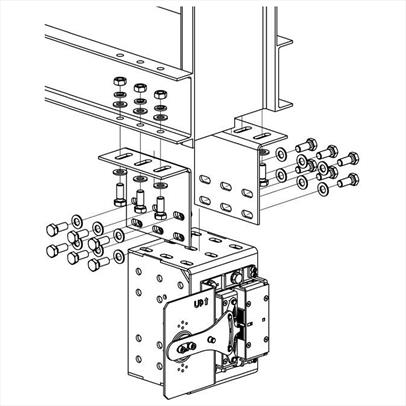

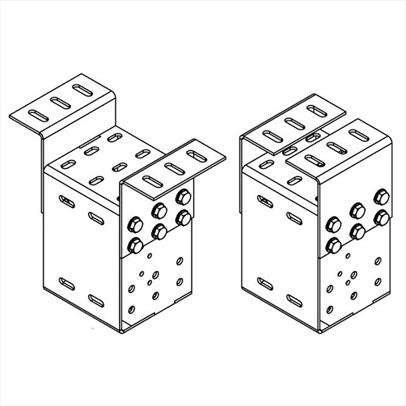

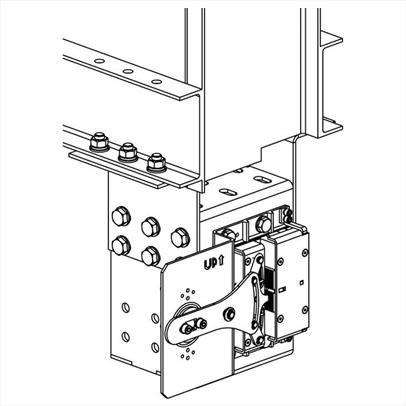

Sold as a set of four. These brackets can be optionally used to modify the attachment position of the RENO support blocks.(RENO) They provide greater versatility and increase the support possibilities on the frame As can be seen in Figure 10, as the “Reno width modification adaptation” parts are installed, the distance between the support points is increased or decreased. Diagram DYN 76.C005 shows the levels of the support points. The adaptation parts and the RENO supports must be connected using M14 bolts.
Please see pdf file below for full instructions.
