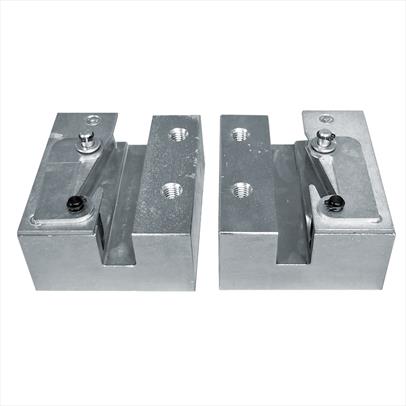

Instantaneous Safety Gear - IN-6000 Down Only

Product Description

Acting: DOWNWARDS
Guide rail type: COLD DRAWN OR MACHINED OILED OR DRY

Admissible guide rail thickness: 16mm

IN-6000

For tripping speed of 1 m/s:
P+Q max. 16 mm guide Cold drawn guide rail = 6601 kg
P+Q max. 16 mm guide Machined guide rail = 5295 kg

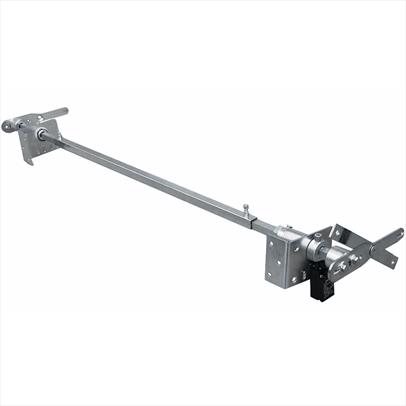

T1 Assembly adjustable between 600mm to 4000mm. Suitable for Lift Cars

Distance between guides: from 600 to 4000 mm
Safety switch

Used with the following products:
IN - 3000
IN - 3000 G10
IN - 6000

T1 CW IN Assembly adjustable between 600mm to 4000mm. Suitable for Lift Counterweights

Distance between guides: from 600 to 4000 mm
Safety switch

Installed as a counterbalance in the following instantaneous safety gear:
IN - 3000
IN - 3000 G10
IN - 6000

P = Contract Load
Q = Car Weight

To order the correct safety gear, we require the contract load plus the car weight.

THE CAR WEIGHT MUST BE ACCURATE.

When ordering the T1 or T1-CW-IN Assembly, please confirm your Distance Between Guides.
