Push Pull Flashing Stop Switch with Guard
Product Code: PPGI01/SM
Product Description
Push Pull Flashing Stop Switch with Guard
The PPGI01/SM is an EN81-20 conforming stop switch with guard, featuring an additional built-in visual aid system.

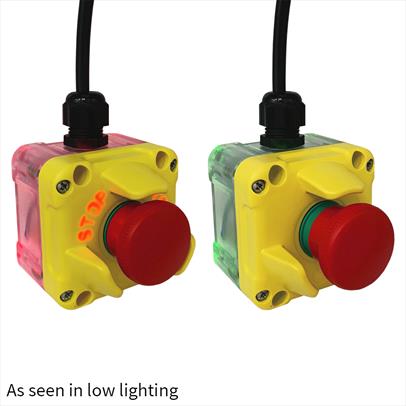

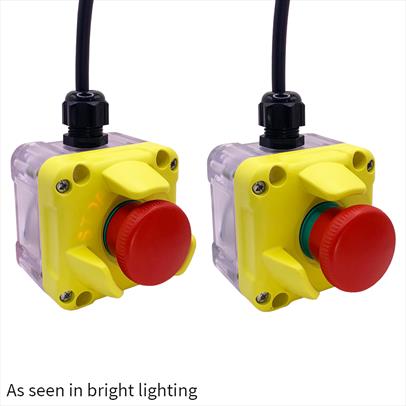

The stop switch will emit a fixed green light when pulled out and will flash red once the switch has been pressed and the lift has been stopped.
Technical Information:
The backlit PCB can be run on either 12VDC or 24VDC connections.
Please see PDF below for full technical specifications.
| Technical Specification: | |
|---|---|
| IP Rating | IP65 |
| Stop Switch Dimensions | 75mm (W) x 75mm (H) x 87mm (D) |
| Cable Entry | M16 / M20 |
| PCB Rated Voltage | 12/24VDC |
| PCB Max. Current | 100mA |
| SM Contact Rated Insulation Voltage | 690V |
| SM Contact Frequency | 50-60Hz |
| SM Contact Alternate Current (AC15) | 4A - 500V |
| SM Contact Direct Current (DC13) | 0.4A - 250V |
