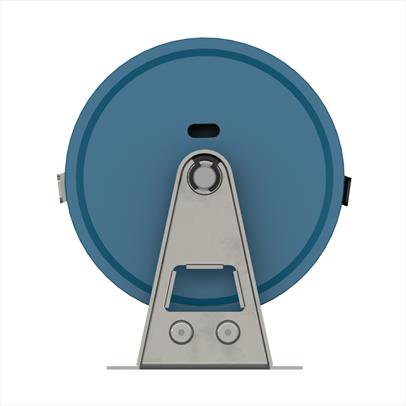

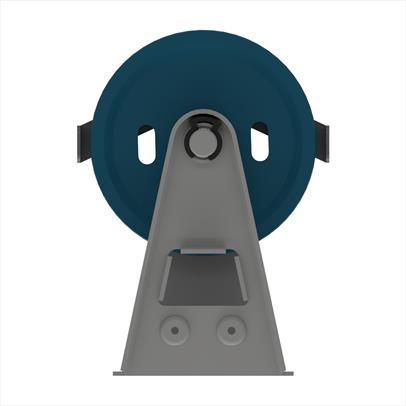

BODE - SGD Tension Weight - 200mm / 300mm Pulley
Product Description
SGD Tension Weight

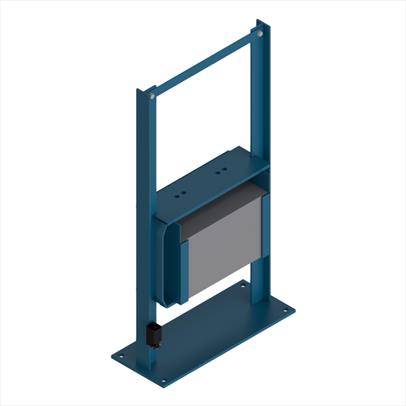

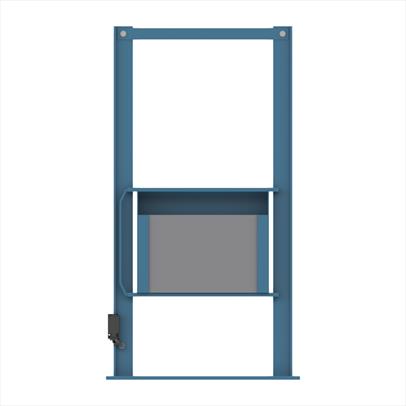

The tension weight SGD is designed to accommodate the limiters or guide pulley type 7; 8 and 9. The weight consists of five weight plates of 15kg each, which corresponds to a total weight of 75kg. The weight container is guided vertically at two guiding angles. The mass of the weight (75kg) acts directly on the limiter rope. The tension weight is attached to the bottom of the shaft. An auxiliary power emergency limit switch can be fitted as an option. Note: The limiters or guide pulleys must be fitted with a cover.
Technical Information:

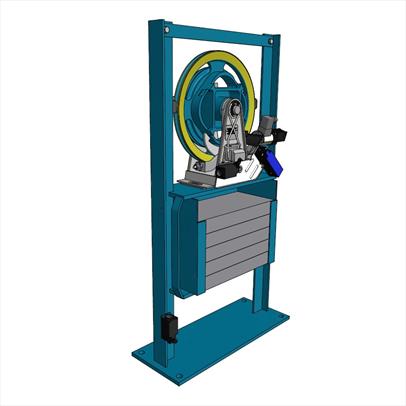

- Overspeed governor or guide pulley can be mounted
- Double-sided guidance of the tension weight
- Auxiliary power emergency limit switch can be mounted
- Slack rope switch according to EN 81
- cover must be ordered with the overspeed governor or guide pulley
