BODE - SRV Tension Weight - 200mm / 300mm Pulley
Product Description

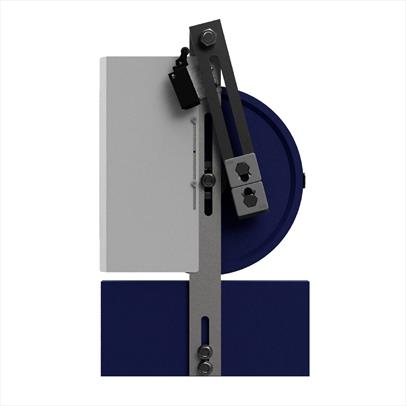

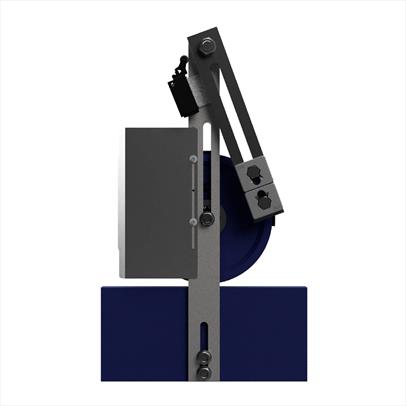

SRV Tension Weight
The SRV tension weight is designed for systems with a safety catch acting downwards. The unit is mounted on the guide rail. The weight (15kg) and the tension pulley can be moved on the support arm and thus adapted to the system. Depending on the position of the weight and the tension pulley, a traction force of 40kg to 75kg is achieved with the tension pulley 200mm and 40 kg to 60 kg with the tension pulley 300mm.
Technical Information:
- Sliding tension pulley
- Weight adjustable
- Slack rope switch according to EN81
- Spring off protection according to EN81
- Coverage according to EN81
