Door Contact HZ
Product Code: HZ
Product Description
HZ

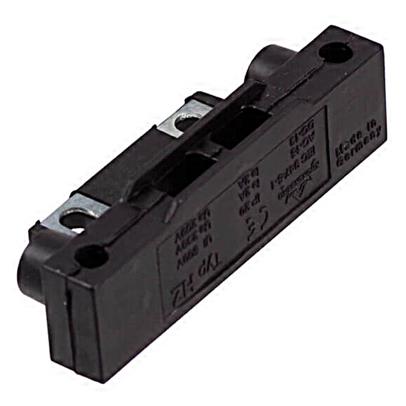

Switch for locking mechanism with hook lock
The switch for locking mechanism for hook locks HZ is a safety switch with forced actuation and is preferably used to control the locking of the hook lock at automatic doors. The switch copes as well with longitudinal movements at small swivelling radius of the hook lock.
FEATURES:
Safety switch with positive contact
Enclosure made of thermoplastic, self-extinguishing
Large-scale feed opening at small swivelling radius at hook lock
High contact safety by self-cleaning
Quiet functioning
Attachment bases made of metal for secure fixation
Optional with UL-marking
TECHNICAL DATA:
Norms EN 81-20, EN 81-50, EN 60947-5-1
Switching Capacity Ui = 500 V, Ith = 10 A, Uimp = 4 kV
AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 2 A
Short-Circuit Capacity T10 A, F 16 A
Contact Material Fine Silver
Actuation Force 1.6 N
Connection By screw terminal max. 2.5 mm², captive
Level of Protection IP20
Ambient air temperature -30 °C up to +80 °C
Installation Position Any
Weight 26 g
ASSOCIATED PRODUCTS:
PZ18 / PZ21 / PZ24
Contact bridges for door switches
The contact bridges PZ are needed to actuate the door switches. Due to different designs and heights and by means of the pads available as option an adaptation to different installation conditions is possible.
Bridge contact are sold separately. They are not supplied with the door contact.
