Door Contact HZS
Product Code: HZS
Product Description

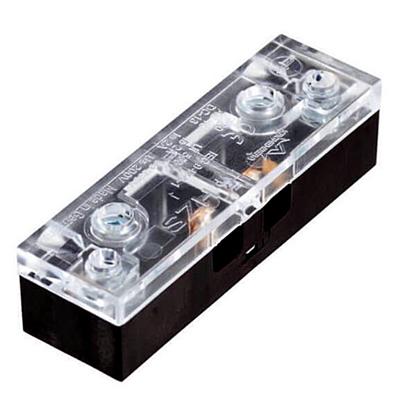

HZS
Door switch with actuation from the small side
The door switch HZS is a safety switch with forced actuation and is used to control the close position of lift doors or as a switch for locking mechanism at automatic doors
Features
§ safety switch with positive contact
§ enclosure made of thermoplastic, self-extinguishing
§ visible contacts through transparent cover
§ high contact safety by self-cleaning
§ integrated fixing screws, captive
TECHNICAL DATA:
Norms EN 81-20, EN 81-50, EN 60947-5-1
Switching Capacity Ui = 500 V, Ith = 10 A, Uimp = 4 kV AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 2 A
Short-Circuit Capacity T10 A, F 16 A
Contact Material Fine Silver
Actuation Force 1.8 N
Connection By screw terminal max. 2.5 mm², captive
Level of Protection IP20
Ambient air temperature -30 °C up to +80 °C
Installation Position Any
Weight 26 g
ASSOCIATED PRODUCTS:
PZ18 / PZ21 / PZ24
Contact bridges for door switches
The contact bridges PZ are needed to actuate the door switches. Different designs and heights allow for adaptation to different installation conditions.
Bridge contacts are sold separately. They are not sold with the door contact.
