Door Contact RZ & RZ-K

Product Description

RZ / RZ-K

Sliding door positive contact

The sliding door positive contact RZ is a safety switch with forced actuation and is preferably used to control the close position of two-part doors on service lifts and at roller shutters. The corresponding contact bridge RZ-K has a silver-plated double roller that rolls over the stationary contacts in the RZ and bridges them electrically.

FEATURES:

Safety switch with positive contact
Contact bridge as roller, spring-mounted, with fine silver coating
Stationary contacts remain bridged for a distance of 15 mm
Generous feeding-in guides for self-location of the contact roller
Quiet functioning
Enclosure thermoplastic, self-extinguishing
Attachment bases made of metal for secure fixation
Especially robust due to break-proof plastic and thick (reinforced) housing walls

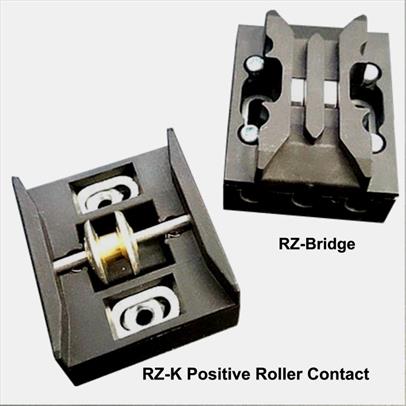

RZ – Bridge Contact
RZ-K – Positive Roller Contact

TECHNICAL DATA:

Norms EN 81-20, EN 81-50, EN 60947-5-1
Switching capacity Ui = 500 V, Ith = 10 A, Uimp = 4 kV AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 220 V Ie = 2 A
Short-circuit capacity T10 A, F 16 A
Contact material fine silver
Actuation force 10 N
Connection by screw terminal max. 2.5 mm²
Level of protection IP20
Ambient air temperature -30 °C up to +80 °C
Installation position Any
​Weight RZ = 46 g RZ-K = 38 g

Each part sold separately
