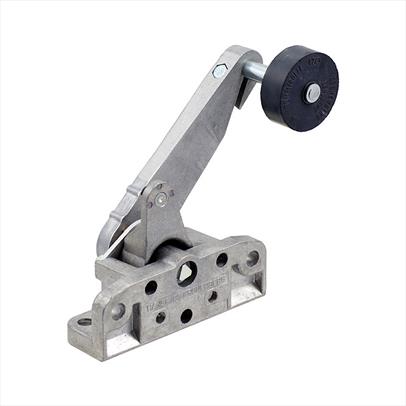

Single Bearing Blocks, E & E-K
Product Code: E/KRO
Product Description
Technical Information:
The E & E-K single bearing blocks are used for the external actuation of door locks on elevators.
It is equipped with an additional emergency release triangle. The connection rod between the single bearing block and the door interlock can be any length required.
For confined spaces, a shortened version of the simple pedestal is available.
E-K version available on request
Features:
- Enables the door locks to be operated on the side of the door fighter
- Roller lever is continuously adjustable
- Triangle key used for emergency release at the bearing axis base
- Robust metal construction
- Precise, durable bearings on the roller lever and rubber roller
- Permanent lubrication with high quality lubricants
- Rubber roller G60 and roller lever RH are both included with the unit
Technical Data:
Casing: Die-Cast Aluminium
Actuation Moment: Maximum permissible 3.8N.m
Traction: Maximum permissible 100N
Position of Use: Any
Ambient Air Temp: -30°C up to +80°C
Weight: E = 346g & E-K = 288g
