Product Description
CLFMO & CLMO

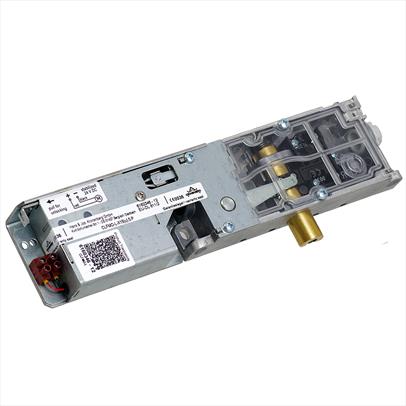

Standard device with motorized actuation. The CL(F)MO is operated by an electric motor and has a high starting power. The device has a small construction height and is energy saving due to the low starting current and low holding current.
If you are replacing an existing type door lock then please quote the full code on the White sticker.
Example Code: CLFMO-L-X55(U).10.6.9.P
FEATURES:
General:
Metal housing with high stability
Silent due to buffers in both directions
Maintenance-free by permanent lubrication with high quality lubricants
Constrained faulty closure at CLFMO for use in passenger lifts
Contacts with solid fine silver plating for a reliable function even at low voltages and currents
Extensive range of accessories
Special Features:
Integrated actuation by maintenance-free, silent three-phase motor
Low pull-in current (< 1 A at 24 V)
Automatic switching to reduced holding current (0.2 A), energy saving
Safe unlocking by position monitoring even if the bolt is temporarily blocked (incorrect operation)
Status display by coloured LED’s
Symmetrical fixing dimensions and centrically arranged latch bolt
Low construction height
Reduced bolt stroke
Integrated auxiliary switch (always existing)
Optional: patented monitoring of the base side emergency release with positive opening safety switch (EN 81-21)
Same position of the emergency release triangle also indirect with monitoring
Lever for self-liberation (manual operation) from the pit and preparation for external cable pull always existing
TECHNICAL DATA:
Norms EN 81-20, EN 81-50, EN 81-21, EN 60947-5-1
Certificates type approval certificate: EU-DL 811/2 (CLFMO) and EU-DL 812/2 (CLMO)
Switching capacity: Ui = 250 V, Ith = 10 A, Uimp = 4 kV
Switch for locking mechanism AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 1 A
Monitoring switch AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 2 A
Auxiliary switch AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 1 A
Short-circuit capacity T 10 A, F 16 A
Contact material fine silver
Motor drive of the latch bolt:
Operating voltage 24 V DC (-10%/+25%) regulated
Pull-in current 1A
Holding current 0.2 A
Connection by screw terminal max. 1.5 mm²
Level of protection IP40
Ambient air temperature -10 °C up to +45 °C
Weight 950 g to 1100 g (according to version)
