Kronenberg Standard Door Lock - DL1 & DLF1 - EN81-21

Product Code: DL1

Product Description

DLF1 EN 81-21

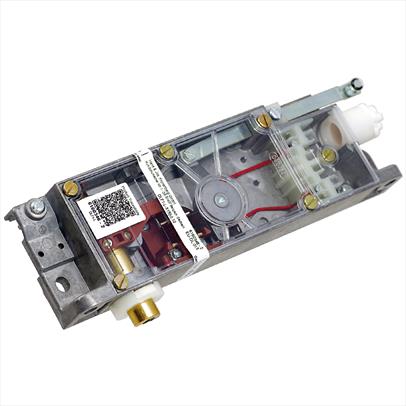

Door interlock with integrated monitoring of the emergency release. The door interlock DL(F)1 with integrated monitoring of the emergency release is particularly suited for lifts with restrictive pit depth or top floor headroom above the lift car. At this version the emergency release triangle is monitored by a positively opening safety switch.

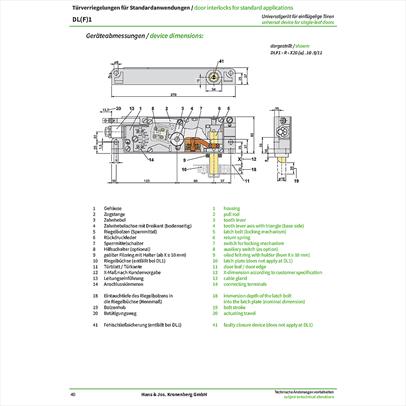

If you are replacing an existing old type door lock then please quote the full code on the White sticker as per PFD Document (Kronenberg Identification Label). The lock often needs to be removed for this code to be visible. Please see picture above.

Example Code: DLF1-L-X55(U).10.6.9/01

FEATURES:

General:

Metal housing with high stability
Transparent cover for optimal function control
Silent due to buffers in both directions
Maintenance-free by permanent lubrication with high quality lubricants (up to -30°C)
Oiled felt ring at latch bolt for lubrication as well as for sealing against dirt and dust (at X-dimension = 10 mm)
Constrained faulty closure at DLF1 for use in passenger lifts
Contacts with solid fine silver plating for a reliable function even at low voltages and currents
Extensive range of accessories

Special Features:

Patented monitoring of the emergency release base side with positive opening safety switch (EN 81-21)
Optional: with bi-stable switching function of the monitoring by a mechanical detent the contacts remain actuated until the reset is made via a short voltage pulse at the electromagnet.
Terminal block with all electrical connections
Optional: auxiliary switch
Connection for Bowden cable or cable pull for actuation or unlocking available, e.g.
application 1: unlocking from the pit ladder (< 1,80 m according to EN 81-20)
application 2: actuation by Bowden cable as alternative to pull rod
Compatible with no longer available KRONENBERG door interlocks (TV1, TVL1)

TECHNICAL DATA:

Norms EN 81-20, EN 81-50, EN 81-21, EN 60947-5-1
Certificates type approval certificate: EU-DL 013 (DLF1) and EU-DL 015 (DL1)
Switching capacity: Ui = 250 V, Ith = 10 A, Uimp = 4 kV
Switch for locking mechanism AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 2 A
Monitoring switch AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 0.5 A
Auxiliary switch .9/... AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 200 V Ie = 0.5 A
Sliding door positive contact AC-15: Ue = 230 V Ie = 2 A, DC-13: Ue = 220 V Ie = 2 A
Short-circuit capacity T 10 A, F 16 A
Contact material fine silver
Actuation:
Actuation torque (typical) 1.5 Nm at the roller lever
Actuation force (typical) 40 N at the pull rod 17.5 N at the roller lever (at 35 mm stroke)
Max. force in non-operating state 5 N at the pull rod
Connection by screw terminal max. 2.5 mm²
Level of protection IP40 (IP20 at .8, .60 and .70)
Ambient air temperature -10 °C up to +65 °C (special version up to -30 °C)
Weight 850 g to 1100 g (according to version)
