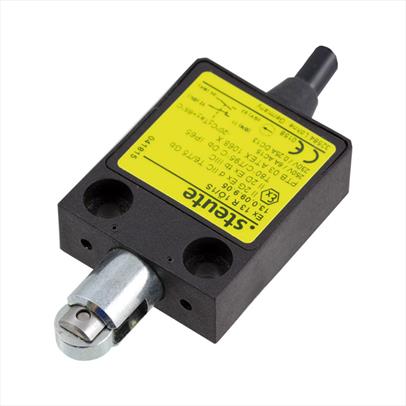

EEX13R Position Switch
Product Code: EEX-13R
Product Description
Technical Data:
The EEX13R position switch with roller plunger is designed as a safety switch with positive contact and is intended for use in potentially explosive areas. It complies with the requirements of the EN81-20 / EN81-50 safety standard regulations. The actuation is done by a roller tappet which can be approached at an angle that may therefore be actuated by a ramped device. The switch is required to measure and detect predetermined positions for moving components.
Features:
- Special version for the use in explosion-endangered areas
- 2m connection cable
- Enclosure made from shock-resistant plastics, self-extinguishing
- Actuation roller made from metal
- Positively driven normally closed contact with a large contact opening (> 2 x 2mm) and additional signal contact
- Precise switching point with high repetitive accuracy
Please note these products are non-returnable unless faulty or damaged.
Technical Data:
Norms: EN 81-20, EN 81-50, EN 60947-5-1, EN 60079-0, EN 60079-1, EN 60079-31, EN ISO 13849-1, EN ISO 14119
Switching Capacity: Ui = 250V, Ith = 6A, Uimp = 4kV, AC-15: Ue = 230V Ie = 6A, DC-13: Ue = 220V Ie = 0.25A
Short-Circuit Capacity: T 6A, F 10A
Contact Material: Silver-Nickel (minimum load 24V / 10mA)
Actuation Force: 15N
Connection: 2m connection cable H05VV-F, 4 x 0.75mm² (10m option available)
Level of Protection: IP65
Ambient Air Temperature: -20 °C up to +65 °C
Weight: 650g (depending on the connection
