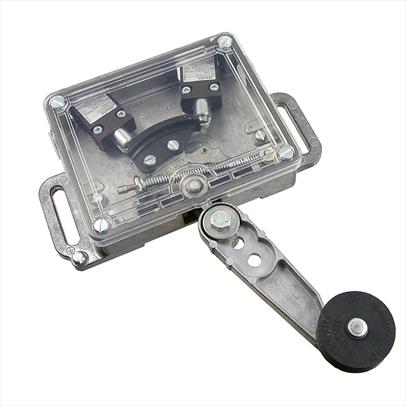

FES-EX Limit Switch - Left & Right Hand
Product Code: FES-EX-L
Product Description
Technical Information:
The Emergency Limit Switch FES-EX is a safety switch with forced actuation and intended for the use in explosion endangered areas. It fulfils the requirements of the EN81-20 / EN81-50 safety regulation standards.
It has two switching positions with spring return to the original position. The emergency limit switch is needed for switching off the lift if, in the event of a fault, the car moves beyond the terminal landing
Features:
- Spring return for one-sided actuation
- Right and left version available, conversion possible
- Robust metal enclosure
- Transparent cover for optimal function control
- Actuation direction may easily be changed
- Up to eight contracts in almost any contact arrangement (Factory options)
- Large connection area
- Quiet functioning
- Easy adjustment because of many possibilities to position
- Positively driven normally closed contacts
Please note these products are non-returnable unless faulty or damaged.
Technical Data:
Norms: EN81-20 , EN81-50 , EN 60947-5-1 , EN 60079-0 , EN 60079-1 , EN 60079-31
Switching Capacity: AC-15: Ue = 230V Ie = 6A , DC-13: Ue = 220V Ie = 0.25A
Short-circuit Capacity: T10 A , F16 A
Contact Material: Silver-Nickel (min. load 24V / 10mA)
Actuation- / Return Force: 2.5N.m
Connection: Connection cable H05VV-F, 4 x 0.75mm², 2m (10m as option)
Level of Protection: IP65
Ambient Air Temperature: -20°C up to + 60°C
Installation Position: Any
Weight: 1750g (depending on the connection cable)
