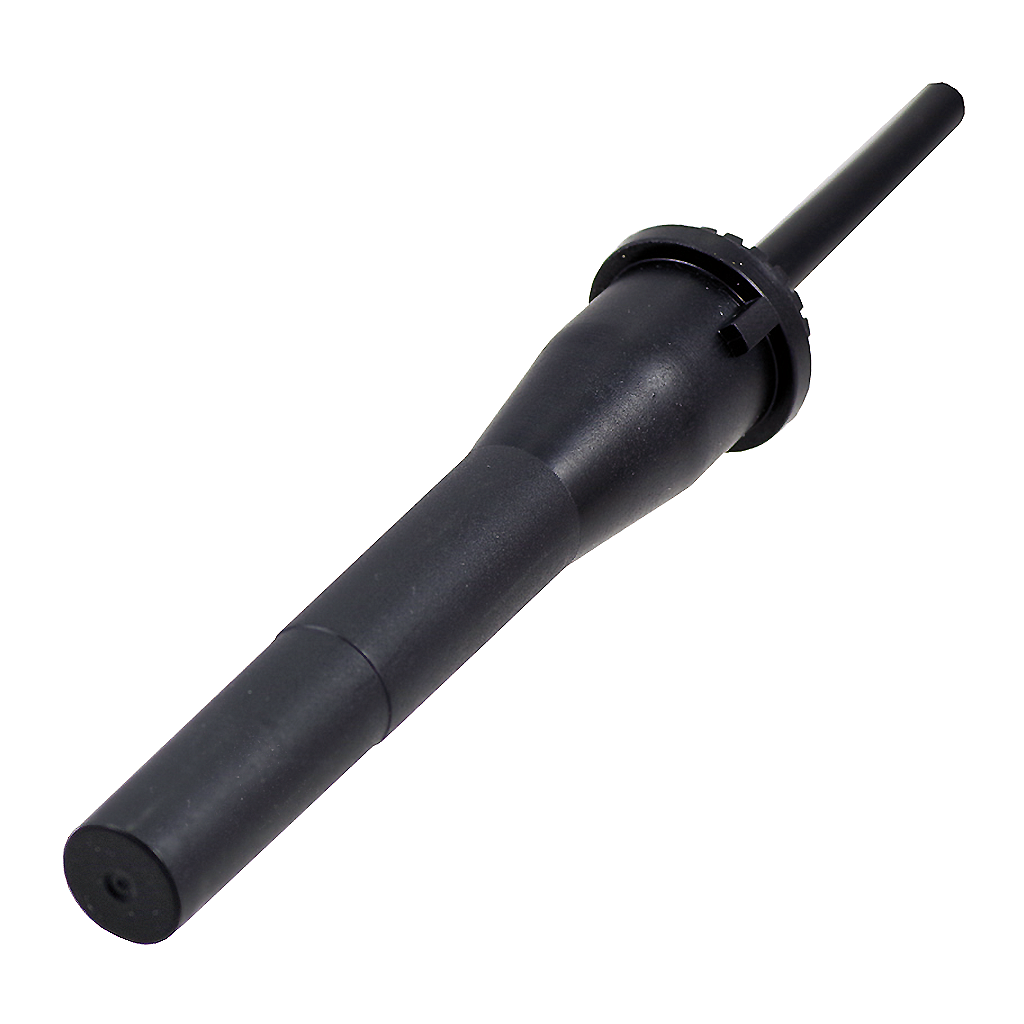

MRK13X Magnet Switch
Product Code: MRK13XRAK
Product Description
Technical Information:
The MKR13 Magnet Switch is equipped with a Reed contact and is suited for application in explosion-endangered areas. It is switched by the approach of a permanent magnet and serves for the detection of certain positions of moving parts.
Features:
- Round magnet switch for explosion endangered areas
- 3m connection cable
- Enclosure mode from shock-resistant plastics
- Self-extinguishing
- Quiet functioning
- Bistable version available (stay-put)
Please note these products are non-returnable unless faulty or damaged.
Technical Data:
Norms: IEC/EN 60079-0, EN 60079-18
Contact Material: Iron/Nickel with Rhodium
Connection: 3m connection cable 2 x 0.75mm² resp. 3 x 0.75mm²
Level of Protection: IP67
Ambient Air Temperature: -40°C up to +70°C
Installation Position: Any
Weight: 115g
Switching Performance Max: 120VA / W, 120VA / W, 60VA / W, 60VA / W
Switching Voltage Max (AC/DC): 250V, 250V, 250V, 250V
Switching Current Max: 1A, 1A, 1A, 1A
Switch-On Time: 2ms, 2ms, 2ms, 2ms
Drop-out Time: 0.2ms, 0.2ms, 0.2ms, 0.2ms
Switching Performance Max: 100Hz, 100Hz, 100Hz, 100Hz
