Limit Switch ES
Product Code: ES/KRO
Product Description
Technical Information:

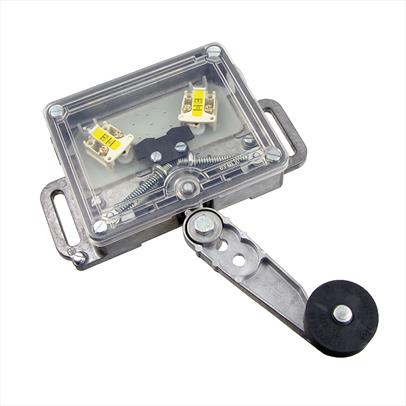

The ES Terminal Limit Switch is a safety switch with forced actuation. It is ideally fixed to the lift car. With the operating ramps mounted either above or below in the shaft, the corresponding travel direction may be interrupted. The Switch may be actuated to the left or right hand side and it interrupts one assigned contact. A return to the central position of the roller lever takes place via guided compression springs.
Features:
- With spring return to centre position, actuation from both sides is possible
- Positively driven normally closed contact in centre position
- Robust metal enclosure
- Transparent cover for optimal function control
- Large connection area
- Quiet functioning
- Versatile positioning, allowing for many adjustment possibilities
- Positively driven normally closed contacts
Technical Data:
Norms: EN81-20 , EN81-50 , EN 60947-5-1
Switching Capacity: Ui = 500V Ith = 6A , Uimp = 4kV- , AC-15: Ue = 230V Ie = 6A , DC-13: Ue = 200V Ie = 0.3A
Short-Circuit Capacity: T10 A , F16 A
Contact Material: Fine Silver
Actuation- / Return Force: 0.8N
Connection: By slot nut max. 2.5mm², Cable gland 2x M20 x 1.5
Level of Protection: IP40
Ambient Air Temperature: -30°C up to + 80°C
Installation Position: Any
Weight: 820g
