Limit Switch FES - Left & Right Hand
Product Code: FES/L
Product Description
Technical Information:

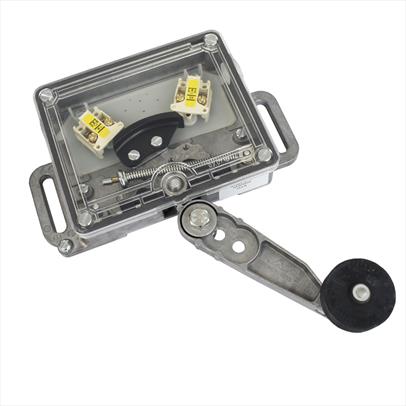

The FES Terminal Limit Switch is a safety switch with forced actuation. It is preferably used as an emergency limit switch in the highest or the lowest landing of lifts. A return to the central position of the roller lever takes place via guided compression springs. The limit switch is actuated at the roller lever by fixed operating ramps.
Features:
- With spring return for one-sided actuation

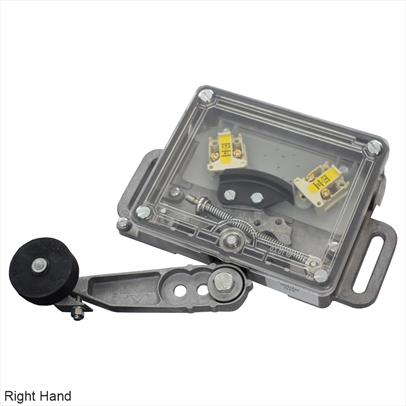

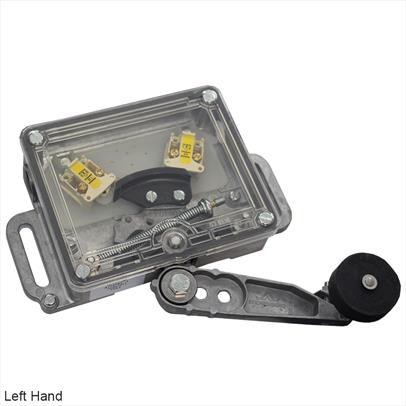

- Right and left version available, conversion possible
- Robust metal enclosure
- Transparent cover for optimal function control
- Actuation direction may easily be changed
- Up to eight contacts in almost any contact arrangement (factory options)
- Large connection area
- Quiet functioning
- Easy adjustment because of many possibilities to position
- Positively driven normally closed contacts
Technical Data:
Norms: EN81-20 , EN81-50 , EN 60947-5-1
Switching Capacity: Ui = 500V Ith = 6A , Uimp = 4kV- , AC-15: Ue = 230V Ie = 6A , DC-13: Ue = 200V Ie = 0.3A
Short-Circuit Capacity: T10 A , F16 A
Contact Material: Fine Silver
Actuation- / Return Force: 0.65N (stay-put)
Connection: By slot nut max. 2.5mm², Cable gland 2x M20 x 1.5
Level of Protection: IP40
Ambient Air Temperature: -30°C up to + 80
Installation Position: Any
Weight: 820g
