Limit Switch FS
Product Code: FS/KRO
Product Description
Technical Information:

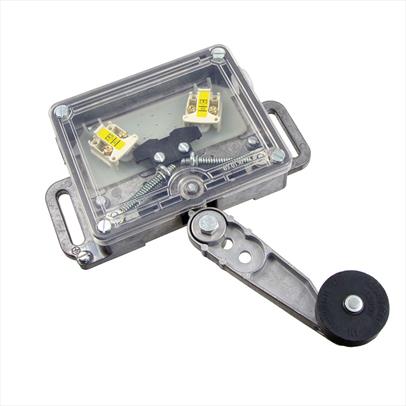

The FS Levelling Limit Switch is a safety switch with forced actuation. Using different contact arrangements the FS Limit Switch can be used for different applications. The Switch may be actuated to the left or right hand side. A return to the central position of the roller lever takes place via guided compression springs.
Features:
- With spring return to centre position, actuation from both sides is possible
- Centre contacts are normally open and closed when actuated
- Robust metal enclosure
- Transparent cover for optimal function control
- Up to Eight contacts in almost any contact arrangement (factory options)
- Large connection area
- Quiet functioning
- Versatile positioning, allowing for many adjustment possibilities
- Positively driven normally closed contacts
Technical Data:
Norms: EN81-20 , EN81-50 , EN 60947-5-1
Switching Capacity: Ui = 500V Ith = 6A , Uimp = 4kV- , AC-15: Ue = 230V Ie = 6A , DC-13: Ue = 200V Ie = 0.3A
Short-Circuit Capacity: T10 A , F16 A
Contact Material: Fine Silver
Actuation- / Return Force: 0.8N
Connection: By slot nut max. 2.5mm², Cable gland 2x M20 x 1.5
Level of Protection: IP40
Ambient Air Temperature: -30°C up to + 80°C
Installation Position: Any
Weight: 820g
