Safety Switch WZF
Product Code: WZF-B
Product Description
Technical Information:

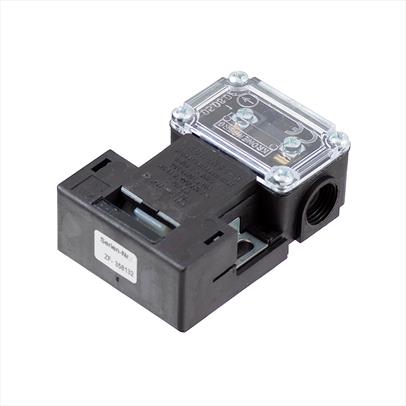

The water-protected WZF Safety Switch with separate actuator is a safety switch with forced operation. It is very robust and features a long actuating travel. Thus an unwanted shutdown of the machine by vibration of the protective device is avoided. When the actuator is pulled out of the switch the contact is forced to open. Compared to the WZ Safety Switch a higher protection against manipulation is ensured by multiple coding.

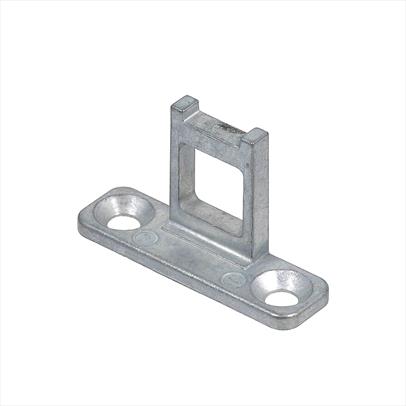

Supplied Complete with BB-MS Actuator
Other Actuator Available on Request
Features:
- Protection against manipulation by multiplex coding
- Especially robust construction
- One positively driven normally closed contact
- Contact movement visible through transparent cover
- Attachment bases made of metal for secure fixation
Technical Data:
Norms: EN 81-20, EN 81-50, IEC/EN 60947-5-1, GS-ET 15, EN ISO 13489-1
Switching Capacity: Ui = 250V, Ith = 10A, Uimp = 4 kV AC-15: Ue = 230V Ie = 6A, DC-13: Ue = 200V Ie = 0.5A AC-15: Ue = 24V Ie = 10A
Shortcircuit Capacity: T10 A, F 16 A
Contact Material: Fine Silver
Actuation- / Back Pressure Force: 21 N / 0 N
Connection: By screw terminal max. 2.5 mm², two cable glands M16x1.5
Level of Protection: IP66
Ambient Air Temperature: -30 °C up to +80 °C
Installation Position: Any
B10d - value (10 % nominal load) 2 million / service life max. 20 years
Weight: WZA = 100g, BB = 6g, BB-KIPP = 23g, BB-MS = 26g, BBV-KIPP = 31g, BBV-MS = 34g
