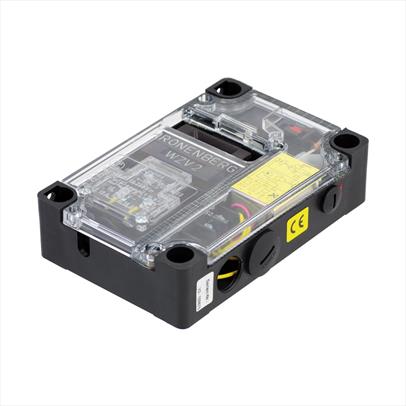

Safety Switch WZV2
Product Code: WZV2-B-230VAC
Product Description
Technical Information:
The water-protected WZ Safety Switch with separate actuator is a safety switch with forced operation and equipped with a monitored locking mechanism. The actuator is mounted at the door leaf. A locking bolt engaging into the actuator prevents the door from opening. By energizing the integrated electromagnet, the locking bolt is pulled out of the actuator and the door can be opened.

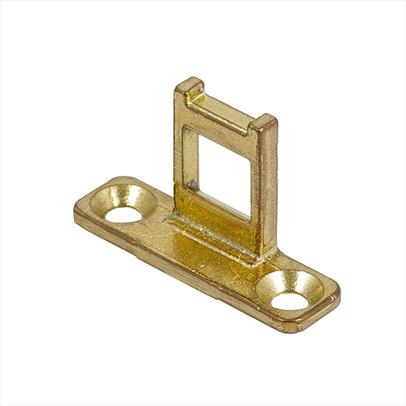

Supplied Complete with BBK Actuator
6 Metre and 10 Metre Cable Length Available on Request
Features:
- Locking by a locking bolt plunging into the actuator
- Position of locking bolt controlled electrically
- Unlocking by built-in electromagnet
- Possibility of auxiliary release at power failure
Technical Data:
Norms: EN 81-20, EN 81-50, IEC/EN 60947-5-1, GS-ET 15, EN ISO 13489-1
Switching Capacity: Ui = 250 V, Ith = 10 A, Uimp = 4 kV AC-15: Ue = 230 V Ie = 6 A, DC-13: Ue = 200 V Ie = 0.5 A AC-15: Ue = 24 V Ie = 10 A
Shortcircuit Capacity: T10 A, F 16 A
Contact Material: Fine Silver
Actuation- / Back Pressure Force: 10 N / 2 N
Connection: By screw terminal max. 2.5 mm², two cable glands M16x1.5
Level of Protection: IP54
Ambient Air Temperature: -30 °C up to +80 °C
Installation Position: Any
B10d - value (10 % nominal load) 10 million / service life max. 20 years
Weight: WZV2 = 480g, BBV-MS = 34g, BBV-KIPP = 31g
