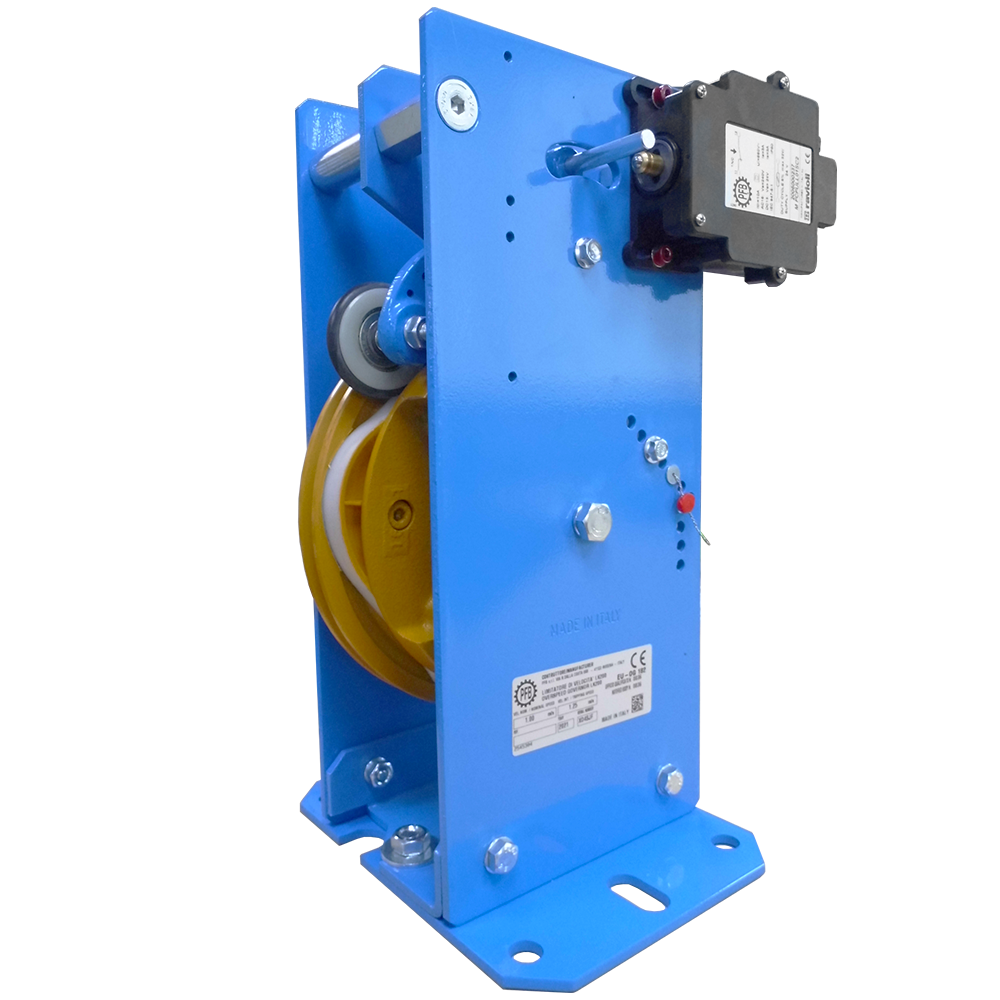

PFB - LK200 Bi-Directional Overspeed Governor - 200mm Pulley

Product Description

LK200 Bidirectional, compact, dynamic, high-performance and with everything you need.

Technical Information:

24VDC Remote Trip/Rest Safety Switch IP50 Rated.
200mm With Hardened Groove
Test Groove
Rope Size: 6mm to 6.5mm
Nominal Speed: Up to 1.48m/s
Min Tripping Speed: 0.32m/s
Max Tripping Speed: 1.70m/s
370mm high.
165mm base width
220mm base depth
Weight 12kg
Commodity Code: 8024200200
Made in Italy

We stock the standard version but we can offer other version on request as per the PFD product drawings below.

12VDC,12VAC, 24VAC, 48VDC, 48VAC, 110VDC, 110VAC, 230VAC Remote Trip/Rest Switch option and Trip Coils available on request.

Trip Coils are available as per the drop down box, 24VDC & 230VAC stock items,48VDC available on request.

IMPORTANT NOTE:
As per PFB Company Policy, it is NOT possible for us to sell Remote Trip/Reset Switch separately. They can only be sold fitted to an Overspeed Governor.

Should you require a Trip Coil system, please add the correct Trip Coil, as per the drop down box.

RETURNS POLICY!!!!

The following items cannot be returned if ordered in error, they can only be returned if they are faulty or damaged, which will be approved by our company Technical Director.
Overspeed Governors, Safety Gears, Oil Buffers, Door Locks.
