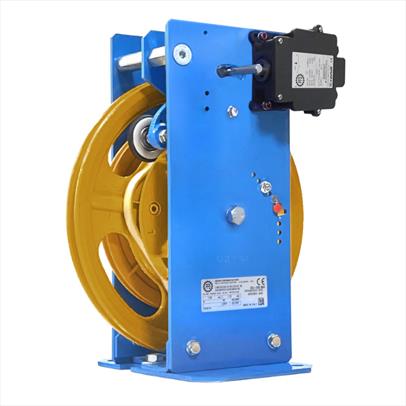

PFB - LK315 Bi-Directional Overspeed Governor - 315mm Pulley

Product Description

LK315 Bidirectional, compact, dynamic, high-performance and with everything you need.

Technical Information:

24VDC Remote Trip/Rest Safety Switch IP50 Rated.
315mm With Hardened Groove
Test Groove.
Rope Size: 8mm to 10mm.
Nominal Speed: Up to 2.81m/s
Min Tripping Speed: 0.40m/s.
Max Tripping Speed: 3.24m/s.
370mm high.
130mm base width.
220mm base depth.
Weight 14kg
Commodity Code: 8024200315
Made in Italy

12VDC,12VAC, 24VAC, 48VDC, 48VAC, 110VDC, 110VAC, 230VAC Remote Trip/Rest Switch option and Trip Coils available on request.

THIS IS A NON STOCK ITEM WITH A DELIVERY TIME OF APPROX 6-7 WEEKS
Trip Coils are available as per the drop down box, 24VDC & 230VAC stock items.

IMPORTANT NOTE:
As per PFB Company Policy, it is NOT possible for us to sell Remote Trip/Reset Switch separately. They can only be sold fitted to an Overspeed Governor.

Should you require a Trip Coil system, please add the correct Trip Coil, as per the drop down box.

RETURNS POLICY!!!!

The following items cannot be returned if ordered in error, they can only be returned if they are faulty or damaged, which will be approved by our company Technical Director.
Overspeed Governors, Safety Gears, Oil Buffers, Door Locks.
