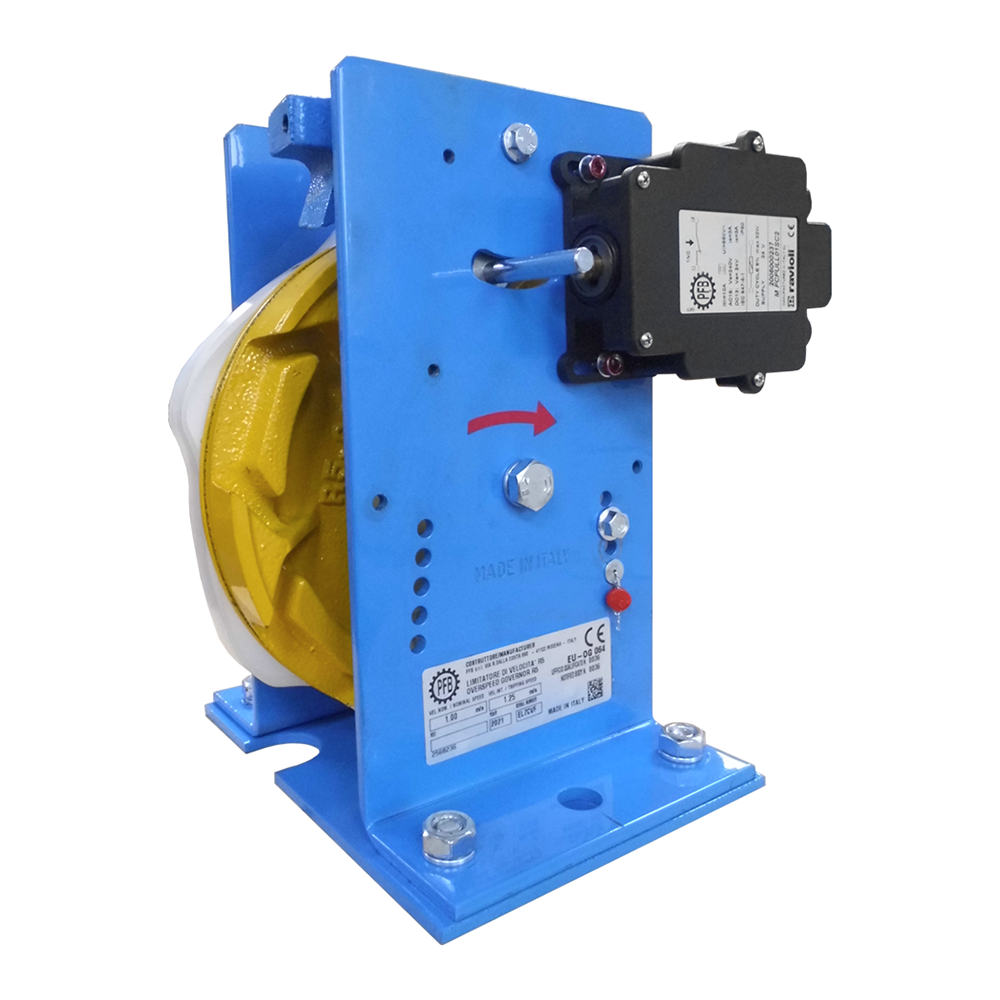

PFB - R5 Clockwise Down Only Direction Overspeed Governor - 200mm Pulley

Product Description

R5, Perfect for Homelifts. Extremely versatile

Technical Information:

24VDC Remote Trip/Rest Safety Switch IP50 Rated
Clockwise Direction (Right Hand) DX
200mm Pulley Wheel
Test Groove
Rope Size: 6mm to 6.5mm
Nominal Speed: Up to 1.55m/s
Min Tripping Speed: 0.24m/s
Max Tripping Speed: 1.78m/s
261mm high
150mm base width
204mm base depth
Weight 10kg
Commodity Code: 80242005100
Made in Italy

Counter Clockwise (Left Hand) SX available on request

12VDC,12VAC, 24VAC, 48VDC, 48VAC, 110VDC, 110VAC, 230VAC Remote Trip/Rest Switch option and Trip Coils available on request.

Trip Coils are available as per the drop down box, 24VDC & 230VAC stock items,48VDC available on request.

R5/R – Reduced Base Plate.
R5/SP – Extended Base Plate.
R5/R/HU – Reduced Base Plate with Hand Up Vertical Plate.
R5/SI/CD – With Remote Control on the Top.

All available on request – Please contact our Sales Team.

IMPORTANT NOTE:
As per PFB Company Policy, it is NOT possible for us to sell Remote Trip/Reset Switch separately. They can only be sold fitted to an Overspeed Governor.

Should you require a Trip Coil system, please add the correct Trip Coil, as per the drop down box.

RETURNS POLICY!!!!

The following items cannot be returned if ordered in error, they can only be returned if they are faulty or damaged, which will be approved by our company Technical Director.
Overspeed Governors, Safety Gears, Oil Buffers, Door Locks.
