Shaft Separation Kit - Wire Netting
Product Code: ART.7600
Product Description

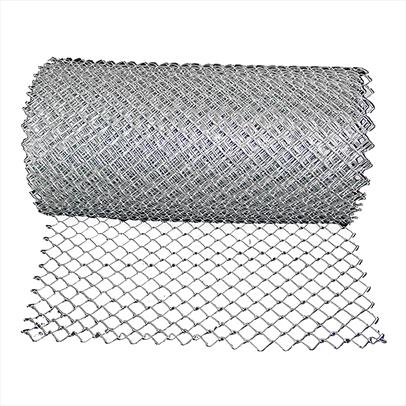

Shaft Separation Kit - Wire netting, hot dipped galvanised, protection with accessories for fixing in the lift shaft.
TECHNICAL INFORMATION:
In case of two lifts in one common shaft.
The wire mesh rolls are 25 meters long and are available in widths of between 80cm to 200cm with mesh sizes of 30 x 30mm & 40 x 40mm
FIXING KITS
Two types of fixing kits.
Variant 1 - For fixing to U-profile or C-profile steel beams by means of steel clamps
Variant 2 - With tension wire 3mm, tightener, tenterhooks and extra long ties for fixing the wire netting on the intermediate beans in the shaft.
ADVICE - acc.to EN81-20 5.2.5.5.2
The distance of the wire netting (40mm x 40mm) to the movable parts must be at least 200mm
With a mesh size of 30mm x 30mm the distance can be reduced to 120mm
