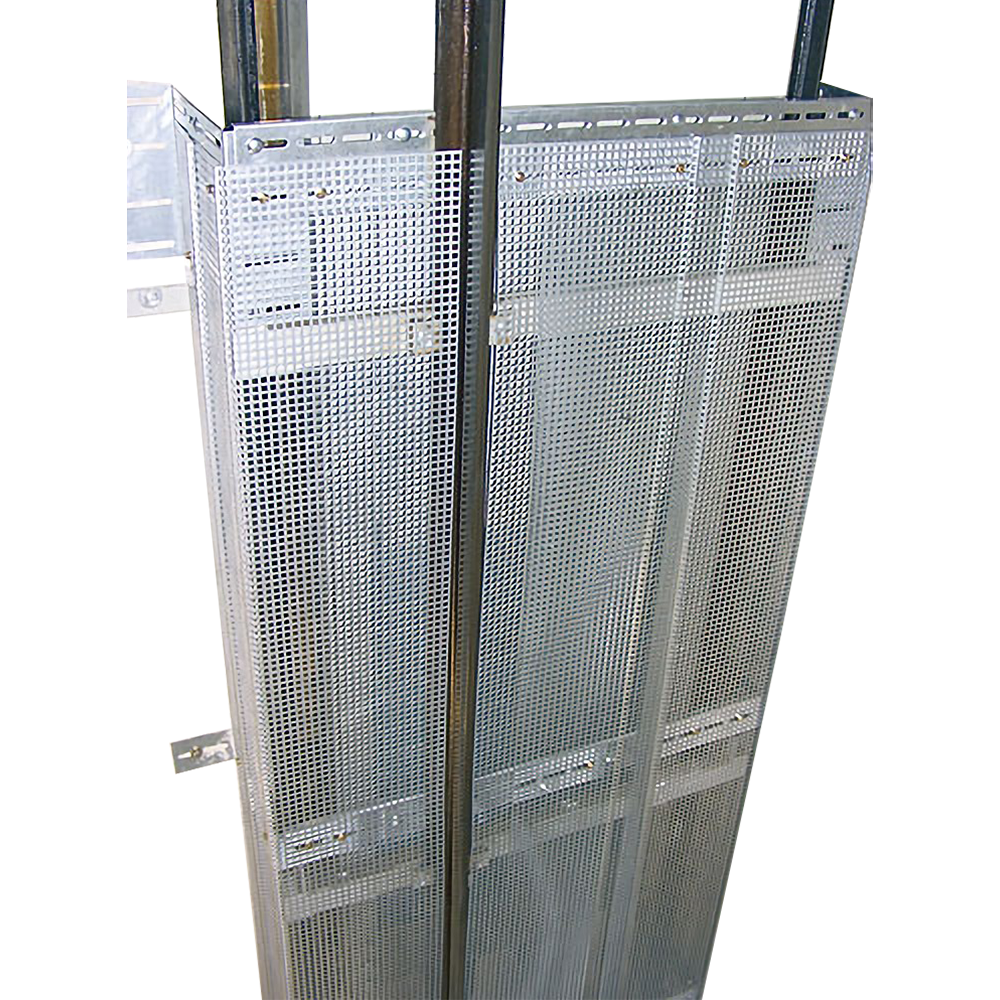

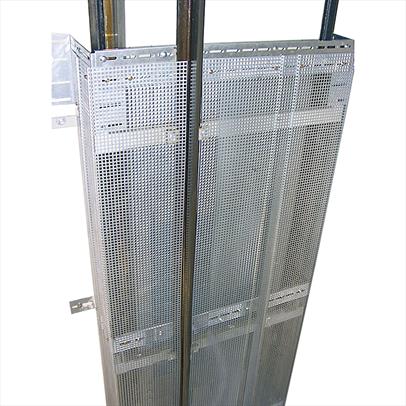

Universal Counterweight Guards
Product Code: ART.78550
Product Description
Universal Counterweight Guards - Construction according to EN 81-1 / EN 81-20 5.2.5.5.1
TECHNICAL INFORMATION:
High form stability due to three surrounding brackets and 1.5mm thick galvanised perforated sheet panels. The standard angles/brackets package is suitable for a counter weight with a max. width up to 1600mm and a max. depth up to 450mm.
Quick mounting with galvanised perforated sheet panels 8x8.
Panel dimensions: 2.2m x 0.31m and 2.2m x 0.15m.
According to EN81-1 5.6.1 the counterweight cover is 2.5m high. Between the ground and the cover there should be a distance of 0.3m.
For full technical details please contact our sales team or visit the following website.
