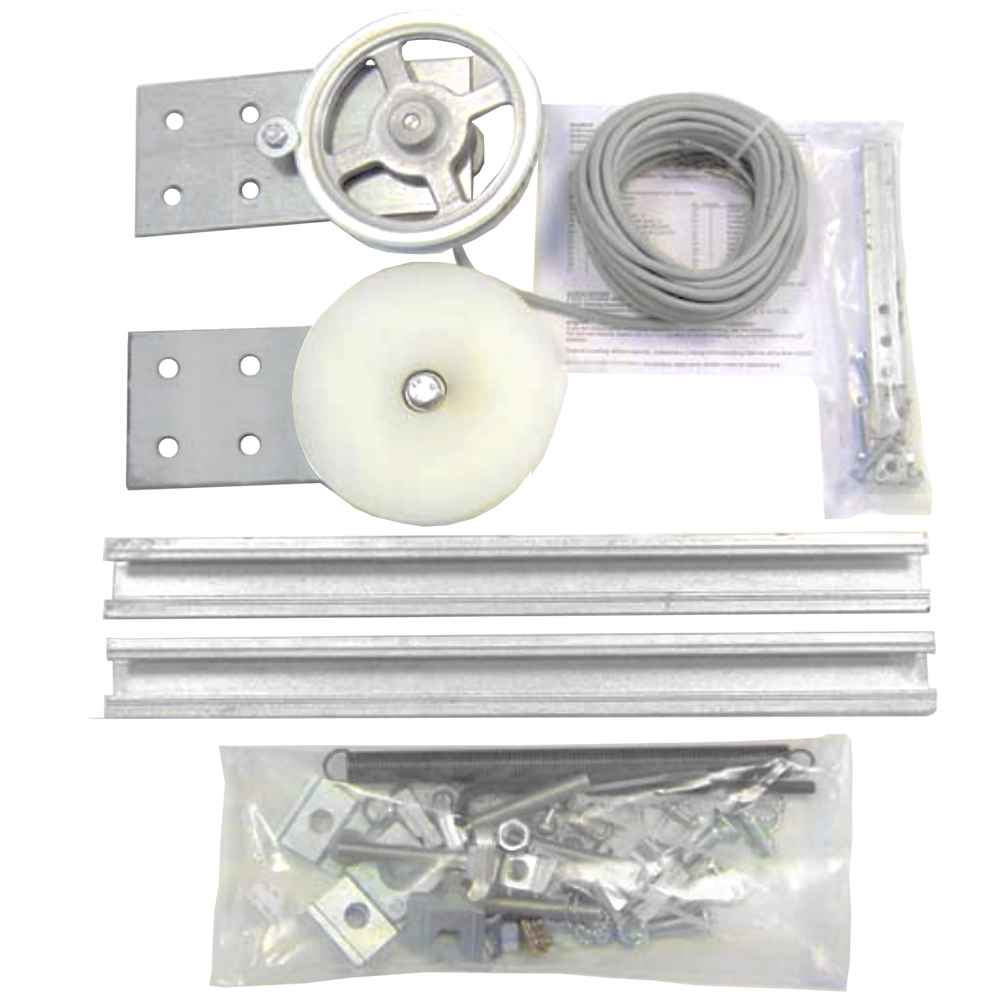

Encoder TYPE 10 Mechanic Set
Product Code: ART.9176
Product Description
Encoder TYPE 10 Mechanic Set​
TECHNICAL INFORMATION:
Max. lifting height: 62.5 m.
Max. rated speed: 4 m/s.
Toothed Belt:
Special toothed belt b=10mm ready made for the delivery-length: 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 110m, 120m, 135m.
Calculation of the required belt-length: lifting height x 2 + 10m.
Example for a lifting height of 48m: 48m x 2 + 10m = 106m =>110m belt-length.
If the speed is higher than 1.6m/s a longer belt according to the overdriving is necessary.
Please use the PDF Link below to identify the kit that you require. The ART. numbers can then be selected from the drop down box below. In addition you can also use the following website for any further technical information.
